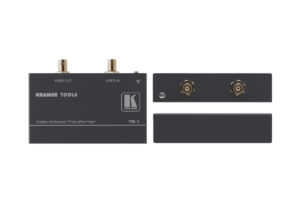

TR-1 Kramer Video Isolation Transformer
à l'achat : SUR DEVIS
en location : 10 €
| INPUT: | 1 composite video, 1Vpp/75Ω on a BNC connector. |
| OUTPUT: | 1 composite video, 1Vpp/75Ω on a BNC connector. |
| INSERTION LOSS: | 0.8dB. |
| MAX. OUTPUT LEVEL: | 4Vpp/75Ω. |
| BANDWIDTH (-3DB): | 5.8MHz. |
| DIFF. GAIN: | 0.05%. |
| DIFF. PHASE: | 0.05Deg. |
| K-FACTOR: | 1.2%. |
| S/N RATIO: | 73.4dB. |
| TILT: | 0.1%. |
| NON-LINEARITY: | 0.1%. |
| COUPLING: | Transformer. |
| POWER CONSUMPTION: | None, passive device. |
| DIMENSIONS: | 12cm x 7.3cm x 3cm (4.7” x 2.88” x 1.2”) W, D, H. |
| WEIGHT: | 0.34kg (0.75lbs) approx. |
| INCLUDED ACCESSORIES: | Mounting brackets. |
| OPTIONS: | RK−3TR 19″ rack adapter. |
